| MOQ: | 5 पीसी |
| कीमत: | negotiable |
| भुगतान विधि: | एल/सी, डी/ए, डी/पी, टी/टी |
| आपूर्ति क्षमता: | प्रति दिन 500 पीसी |
1-6GHz 90° Hybrid Coupler
| Part Number | VN-HC90°-1G-6G-SMAF |
| Operating Frequency ( MHz ) | 1000-6000 |
| Phase Difference ( Ohm ) | 90° |
| Nominal Split (dB) | 3.01 |
| Insertion Loss (dB) | ≤0.7 |
| VSWR | ≤1.25:1 |
| Amplitude Balance(dB) | ≤±0.6 |
| Phase Balance(°) | ≤±5.0 |
| Isolation(dB) | ≥20 |
| Impedance | 50 |
| Net Weight(KG) | 0.15 |
| Connectors | SMA-F |
| Power (Watt, max) | Average: 50W ; Peak: 1000W |

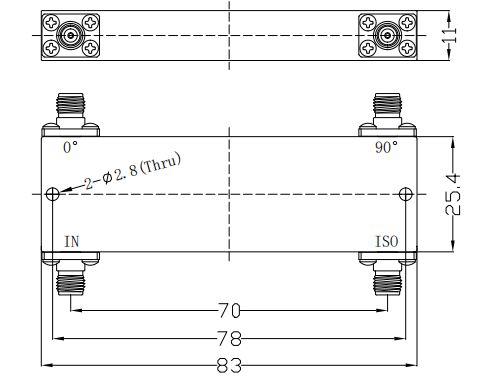

| Dimension (mm)(L×W×H, excl connector) | 83*25.4*11 |
| ROHS Compliance | Yes |
|
|
